Seismic Resistant Ceiling Grid

In modern commercial construction, safety and structural integrity are paramount, especially in earthquake-prone regions. A seismic resistant ceiling grid is no longer just an option; it is a critical safety component designed to prevent ceiling collapse during seismic events. As a leading manufacturer of commercial ceiling systems, we specialize in engineering heavy-duty grid solutions that accommodate lateral movement, absorb kinetic energy, and maintain structural continuity under extreme stress. Our systems are rigorously tested to meet stringent global building codes, ensuring maximum protection for both property and human lives.

To meet the rigorous demands of global tier-1 projects, our production lines follow strict physical and metallurgical controls:

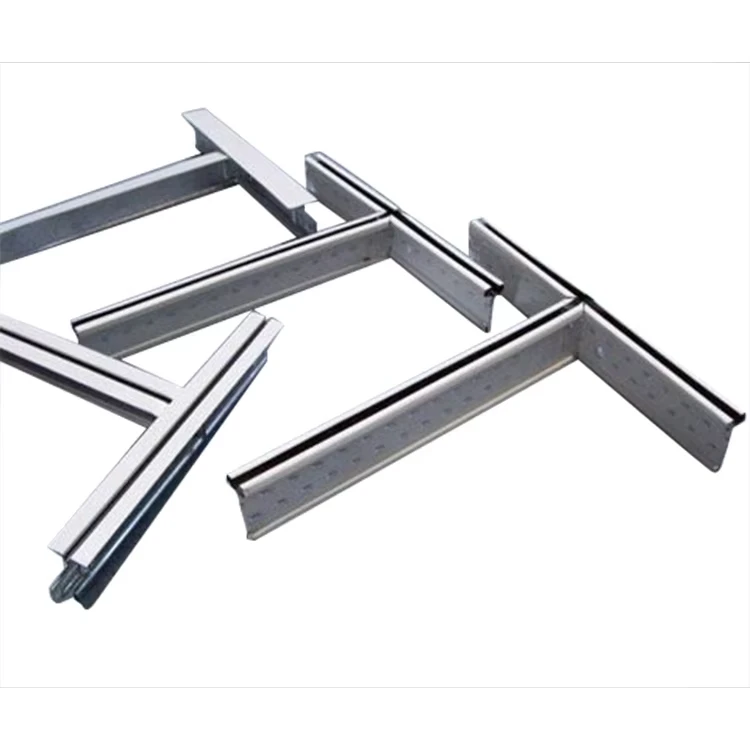

System Type: Exposed Tee System (T24 / T15 Series)

Base Material: Premium Hot-Dipped Galvanized Steel (HDG Core)

Zinc Coating Thickness: Double-sided Z120 to Z275 g/m² (Customizable per project humidity ratings)

Material Gauge: 0.30mm - 0.40mm heavy-gauge commercial rating

Main Runner Options: 38mm × 24mm / 32mm × 24mm (Length: 3600mm / 3660mm)

Cross Tee Options: Lengths of 1200mm/1220mm and 600mm/610mm with robust structural shoulders

Seismic Compliance: Certified for International Building Code (IBC) Seismic Design Categories C, D, E, and F

When selecting a suspension system for high-risk zones, understanding the engineering behind the components is essential. Our seismic resistant ceiling grid features premium hot-dipped galvanized steel construction, providing exceptional structural strength and an elite level of corrosion resistance that prevents rust-induced material fatigue. The dual-protection engineering of the Z120-Z275 zinc coating establishes an absolute barrier against atmospheric moisture. This uniform hot-dipped zinc matrix provides continuous sacrificial protection along sheared edges and punch holes. It prevents edge-creep rust and ensures the grid maintains its full certified load-bearing capacity for over 25 years under high-strain conditions.

Furthermore, our designs are optimized for quick installation, reducing labor costs on-site while ensuring absolute compliance with ASTM E580 and International Building Code (IBC) Seismic Design Categories C through F.

A true earthquake-proof layout relies on the unified movement of dedicated structural accessories working in tandem with the primary grid:

Seismic Separation Joint Clips: Engineered to isolate the ceiling plane from dynamic wall movement during a seismic event. This clip allows a controlled +/- 20mm lateral slide matrix, absorbing seismic shear waves and preventing grid buckling.

Heavy-Duty Perimeter Wall Angles: Manufactured from 0.50mm - 0.60mm HDG steel with an oversized horizontal flange (minimum 50mm width). This extended surface provides a legal safety ledge, ensuring tees will not slip off the wall angle during displacement.

Vibration-Damping Suspension Clips: Designed with a reinforced locking mechanism that tightly grips the main runner, neutralizing kinetic energy under severe vertical acceleration.

Q1: Does your system comply with ASTM E580 standards for high-risk seismic categories?
A: Yes. Our system is specifically engineered to meet and exceed the requirements of ASTM E580 and the IBC for Seismic Design Categories C through F. We supply verified heavy-duty main runners capable of handling a minimum load capacity of 16 lbs/LF, ensuring absolute compliance for hospitals, schools, and high-occupancy commercial projects.

Q2: Why do you specify Hot-Dipped Galvanized (HDG) steel instead of standard electro-galvanized steel?
A: Standard electro-galvanized coatings are too thin (typically less than 40g/m²), making them highly susceptible to localized micro-rust, which creates structural weak points. Our hot-dipped galvanized steel features a thick zinc layer up to Z275. This heavy zinc protection eliminates rust-induced material fatigue along the punch slots and locking tabs, ensuring the grid retains its full structural tension during cyclic load testing and long-term aging.

Q3: Can your seismic grid accommodate heavy lay-in acoustic panels and integrated HVAC/lighting fixtures?
A: Absolutely. Our grid utilizes a patented lock connection that delivers exceptional torsional stiffness. When locked with our seismic compression clips, the system distributes localized weight across the entire suspension grid, easily supporting heavy mineral fiber boards, architectural metal panels, and heavy integrated service units without twisting or sag.

Q4: Do you provide mill test certificates (MTC) and third-party load test reports for custom orders?
A: Yes, transparency is our core policy. Every shipment is accompanied by an official Mill Test Certificate (MTC) confirming the base metal tensile strength and precise zinc coating weight. Upon request, we also provide verified Intertek, SGS, or ASTM structural load-test documentation to streamline your local building inspector's approval process.
